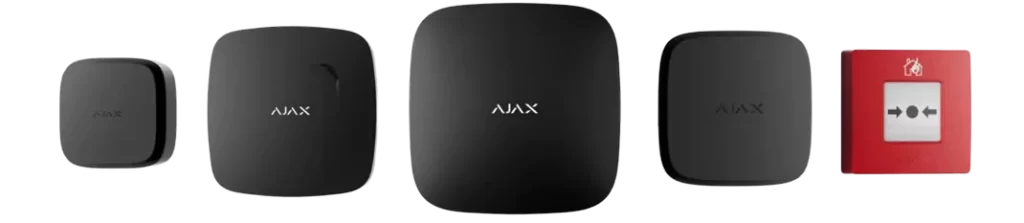

Ajax Fire Detection
Residential Fire Detection
Baseline product line offers an entirely new level of technology in fire safety, meeting the highest industry standards. Ajax devices include a wide range of wireless fire detectors with different sensors and batteries options to cover every market need.
FireProtect 2 is a next-gen detector designed for residential fire safety. The unique smoke chamber does not require regular cleaning, the dual-spectrum sensor distinguishes smoke from steam, the thermistor quickly reacts to the synthetic materials burning, and sophisticated software minimizes false alarms.
Ajax FireProtect 2 RB
Replaceable Batteries
(7 Years of Operation)
Ajax FireProtect 2 RB – Replaceable Batteries with up to 7 years of operation.
FireProtect 2 RB has replaceable batteries. This type of detector operates for up to 7 years from pre-installed batteries. After the batteries are discharged, you can replace them with new ones.

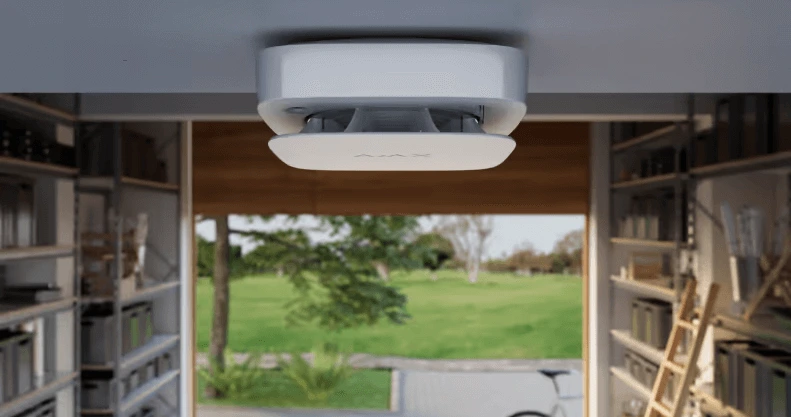

The Ajax FireProtect 2 RB Heat, Smoke & CO detector, with replaceable batteries, is a flagship product in fire safety innovation. Combining smoke, temperature, and carbon monoxide detection in one device, it uses advanced sensor technology to provide a comprehensive early warning system, ensuring your home or workplace is protected from potential hazards.
SMOKE DETECTION:
FireProtect 2 detects smoke and does not react to water vapour thanks to a dual-spectrum optical sensor with blue and infrared LEDs. LEDs emit light with different wavelengths, which allows the detector to determine the size of the volatile particles and react only to smoke.
HEAT DETECTION:
Two built-in thermistors are responsible for the reaction to temperature rise. Thermistors are located outside the detector for faster threat detection. If the room temPerature exceeds +64°C or increases at more than 10°C within a minute, the detector recognizes this as a rapid temperature rise and raises the alarm.
CARBON MONOXIDE DETECTION:
A built-in chemical sensor with a service life of at least 10 years is responsible for detecting dangerous concentrations of carbon monoxide in the FireProtect 2. Ajax carbon monoxide detectors are designed to last for this period, after which they should be replaced to ensure reliable detection.
Ajax FireProtect 2 RB (CO): Detects dangerous levels of carbon monoxide.
Ajax FireProtect 2 RB (Heat): Sensitive to rapid temperature increases.
Ajax FireProtect 2 RB (Heat/CO): Combines heat and carbon monoxide detection.
Ajax FireProtect 2 RB (Heat/Smoke): Offers heat and smoke detection.
Ajax FireProtect 2 RB (Heat/Smoke/CO): A detector for heat, smoke, and carbon monoxide.
Interconnected Fire Detectors: FireProtect 2 detectors have an improved interconnected fire alarm algorithm that activates all fire detectors’ sirens within 20 seconds. This function is available only when the detectors operate with the hub.
Maintenance-Free Operation: A self-test system automatically diagnoses sensor states, with easy testing options available via the Ajax apps.
Low battery warning: The detector reports low batteries at least 30 days before its full discharge. Users get notifications from their Ajax app. Also, FireProtect 2 has an LED indicator and audible beeps for a low battery alert.
To mute interconnected fire detectors, use the Ajax app or press the central part of the detectors’ front panel with your hand or a suitable object, such as a mop handle.
The detector supports manual testing mode. It is activated by pressing the device’s front panel. The front panel has a mechanical button, which can be pressed either manually or with a floor mop. During the test, the built-in siren and testing of sensors are run.
Available in black and white.

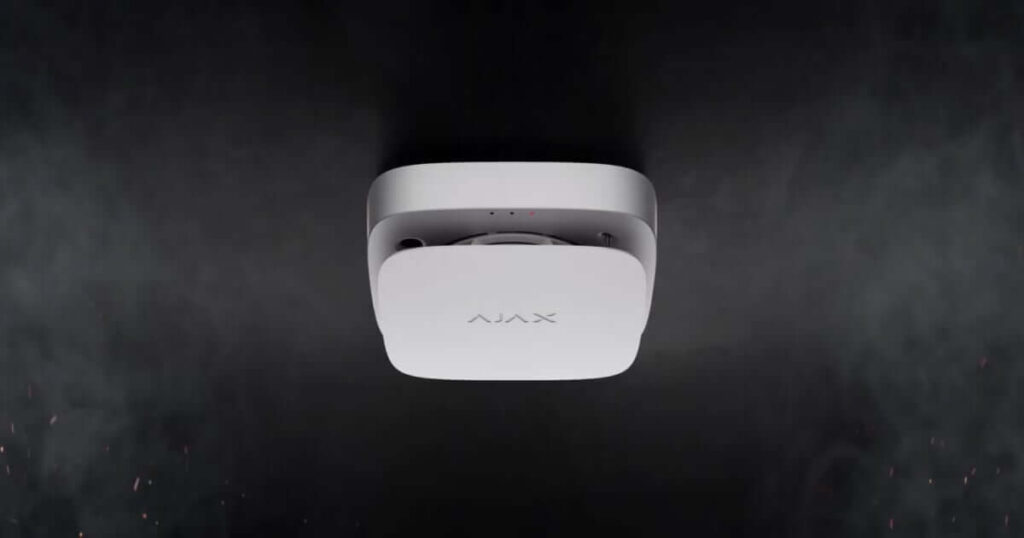

Ajax FireProtect 2 AC
Mains Powered with Sealed Backup Batteries
(10 Years of Operation)
Ajax FireProtect 2 AC is mains powered and comes with a sealed battery providing 10 years of operation with non-replaceable batteries.
Introducing the Ajax FireProtect 2 AC series, mains-powered with a sealed backup battery, a comprehensive fire safety solution that combines heat, smoke, and carbon monoxide (CO) detection into a single, intuitive device. With a range of variants to suit various safety requirements and user preferences, this innovative series provides unparalleled protection for your home or business.
SMOKE DETECTION:
FireProtect 2 detects smoke and does not react to water vapour thanks to a dual-spectrum optical sensor with blue and infrared LEDs. LEDs emit light with different wavelengths, which allows the detector to determine the size of the volatile particles and react only to smoke.
HEAT DETECTION:
Two built-in thermistors are responsible for the reaction to temperature rise. Thermistors are located outside the detector for faster threat detection. If the room temperature exceeds +64°C or increases at more than 10°C within a minute, the detector recognizes this as a rapid temperature rise and raises the alarm.
CARBON MONOXIDE DETECTION:
A built-in chemical sensor with a service life of at least 10 years is responsible for detecting dangerous concentrations of carbon monoxide in the FireProtect 2. Ajax carbon monoxide detectors are designed to last for this period, after which they should be replaced to ensure reliable detection.
Ajax FireProtect 2 AC (CO): Detects dangerous levels of carbon monoxide.
Ajax FireProtect 2 AC (Heat): Sensitive to rapid temperature increases.
Ajax FireProtect 2 AC (Heat/CO): Combines heat and carbon monoxide detection.
Ajax FireProtect 2 AC (Heat/Smoke): Offers heat and smoke detection.
Ajax FireProtect 2 AC (Heat/Smoke/CO): A detector for heat, smoke, and carbon monoxide.
Interconnected Fire Detectors: FireProtect 2 detectors have an improved interconnected fire alarm algorithm that activates all fire detectors’ sirens within 20 seconds. This function is available only when the detectors operate with the hub.
Maintenance-Free Operation: A self-test system automatically diagnoses sensor states, with easy testing options available via the Ajax apps.
Stable Performance: The detector is powered by 240V mains and has a sealed battery to serve as a backup. Even in a power outage, the detector keeps operating smoothly. Designed for the quick and reliable fire detection over its 10-year lifespan.
To mute interconnected fire detectors, use the Ajax app or press the central part of the detectors’ front panel with your hand or a suitable object, such as a mop handle.
The detector supports manual testing mode. It is activated by pressing the device’s front panel. The front panel has a mechanical button, which can be pressed either manually or with a floor mop. During the test, the built-in siren and testing of sensors are run.
Available in black and white.
Note: If new mains power is required for the fire detectors, we will arrange for a qualified electrician to install the necessary cabling. This ensures that all electrical work is completed safely and in compliance with local regulations.
Ajax FireProtect 2 SB
Sealed Batteries
(10 Years of Operation)
Ajax FireProtect 2 SB – Sealed Batteries with 10 years of operation and non-replaceable batteries.
FireProtect 2 SB has sealed batteries. This type of detector operates for up to 10 years. After the batteries are discharged, such a detector should be replaced with a new one.
The Ajax FireProtect 2 SB Heat, Smoke & CO detector, with replaceable batteries, is a flagship product in fire safety innovation. Combining smoke, temperature, and carbon monoxide detection in one device, it uses advanced sensor technology to provide a comprehensive early warning system, ensuring your home or workplace is protected from potential hazards.
SMOKE DETECTION:
FireProtect 2 detects smoke and does not react to water vapour thanks to a dual-spectrum optical sensor with blue and infrared LEDs. LEDs emit light with different wavelengths, which allows the detector to determine the size of the volatile particles and react only to smoke.
HEAT DETECTION:
Two built-in thermistors are responsible for the reaction to temperature rise. Thermistors are located outside the detector for faster threat detection. If the room temPerature exceeds +64°C or increases at more than 10°C within a minute, the detector recognizes this as a rapid temperature rise and raises the alarm.
CARBON MONOXIDE DETECTION:
A built-in chemical sensor with a service life of at least 10 years is responsible for detecting dangerous concentrations of carbon monoxide in the FireProtect 2. Ajax carbon monoxide detectors are designed to last for this period, after which they should be replaced to ensure reliable detection.
Ajax FireProtect 2 SB (CO): Detects dangerous levels of carbon monoxide.
Ajax FireProtect 2 SB (Heat): Sensitive to rapid temperature increases.
Ajax FireProtect 2 SB (Heat/CO): Combines heat and carbon monoxide detection.
Ajax FireProtect 2 SB (Heat/Smoke): Offers heat and smoke detection.
Ajax FireProtect 2 SB (Heat/Smoke/CO): A detector for heat, smoke, and carbon monoxide.
Interconnected Fire Detectors: FireProtect 2 detectors have an improved interconnected fire alarm algorithm that activates all fire detectors’ sirens within 20 seconds. This function is available only when the detectors operate with the hub.
Maintenance-Free Operation: A self-test system automatically diagnoses sensor states, with easy testing options available via the Ajax apps.
Low battery warning: The detector reports low batteries at least 30 days before its full discharge. Users get notifications from their Ajax app. Also, FireProtect 2 has an LED indicator and audible beeps for a low battery alert.
To mute interconnected fire detectors, use the Ajax app or press the central part of the detectors’ front panel with your hand or a suitable object, such as a mop handle.
The detector supports manual testing mode. It is activated by pressing the device’s front panel. The front panel has a mechanical button, which can be pressed either manually or with a floor mop. During the test, the built-in siren and testing of sensors are run.
Available in black and white.

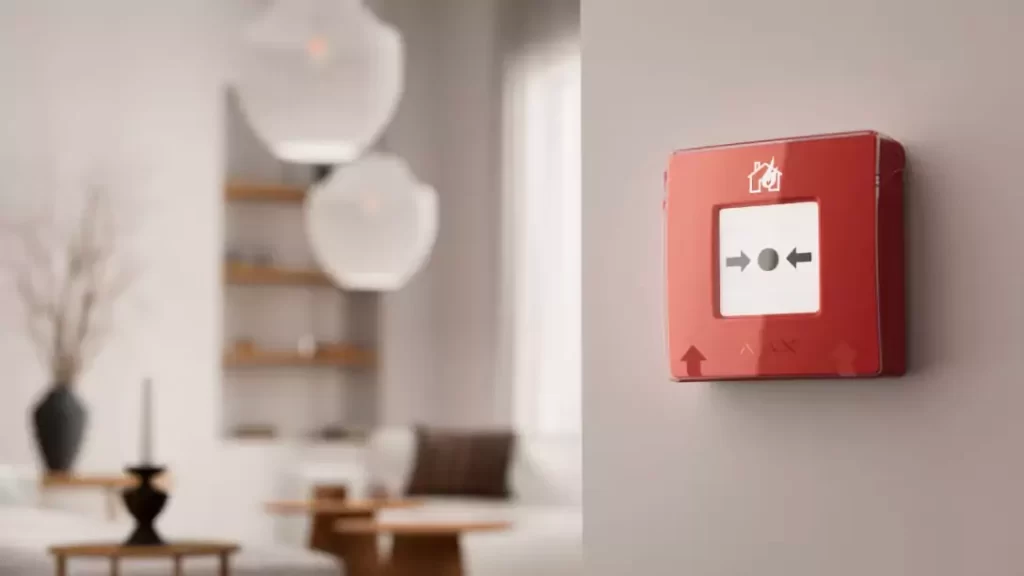

Ajax Red Manual Call Point (Fire)
Ajax Red Manual Call Point Jeweller is a wireless wall-mounted button for manual fire alarm activation. The device allows you to activate an alarm in case of an emergency. The button can be reset using a special tool key.
With sealed battery fire detectors, such as the FireProtect 2 AC and FireProtect 2 RB, the batteries are designed to last up to 10 years. After this period, the entire device will need to be replaced.
For fire detectors with replaceable batteries, such as the FireProtect 2 RB, the batteries provide up to 7 years of operation. Once depleted, the batteries can be replaced, allowing you to continue using the same device.
Ajax carbon monoxide detectors are designed to last 10 years, after which they should be replaced to ensure reliable detection.
We recommend reviewing your local building regulations and insurance requirements to ensure you select the correct detector, whether mains-powered with sealed backup batteries, sealed battery units, or models with replaceable batteries. Additionally, it is important to determine the appropriate locations for installation.
Please note that while we provide guidance, we cannot accept responsibility for compliance with local regulations or specific installation requirements.
At N.S.L Security Systems Ltd, we pride ourselves on delivering exceptional service to our customers.
That’s why we’re proud to offer FREE Support through the Ajax App.
With our Ajax Company Branded App, we can connect to your Ajax system remotely, providing technical support and assistance without incurring call-out charges.
Additionally, you will receive a 2-year warranty on Ajax devices.
Accredited and Certified Installers of Ajax Security Products.
As Certified Ajax Specialists, we stand out as Expert Installers and Trusted Partner, committed to delivering Exceptional Quality and Service.
ACCREDITED AJAX CERTIFICATION SPECIALIST
We are the leading Accredited Ajax Installation Company in Leeds, West Yorkshire, and the surrounding regions.
Our team has completed Specialised Ajax training to deliver exceptional service in every installation project.
We proudly display our Ajax Accredited Certifications, showcasing our industry excellence.
As Authorised Ajax Systems Partners, we provide official guarantees and services.
We have achieved Ajax Verified Support Status, providing us with exclusive advanced access and priority support.
AJAX PARTNER CERTIFICATE
AUTHORISED SYSTEMS INSTALLER
AJAX UK PARTNER CERTIFICATE
Certified Ajax Authorised Systems Installer in the Territory of the United Kingdom of Great Britain and Northern Ireland
Experience our latest Ajax Fire Detection installations! Click here to dive into our Instagram for a captivating visual tour of our projects.
Mains Fire Alarm Locations in Your Home
Installing mains-powered fire alarms is crucial for ensuring the safety of your household. These alarms are directly connected to your home’s electrical system and include backup batteries to operate in case of power outages. Proper placement of these alarms is essential to maximise their effectiveness in detecting smoke or fire early on.
Recommended Locations for Mains Fire Alarms:
1. Hallways and Landings:
– Install smoke alarms in all main corridors, stairways, and landings.
– Place them centrally on the ceiling to ensure maximum coverage and within 3 metres of any inhabitable room.
2. Living Rooms and Bedrooms:
– It’s advisable to have a fire alarm in every living room and each bedroom.
– Mount alarms on the ceiling or high on the wall, away from corners.
3. Kitchen:
– Position a heat alarm in the kitchen to detect rapid temperature changes rather than smoke.
– Install it away from cooking appliances to avoid false alarms.
4. Basements and Attics:
– If applicable, install smoke alarms in basements and attics where fires can start unnoticed.
By strategically placing mains fire alarms throughout your home, you significantly increase your household’s safety against fire hazards.
